Espresso GP

Espresso GP
7005 Alloy Time Trial Frame

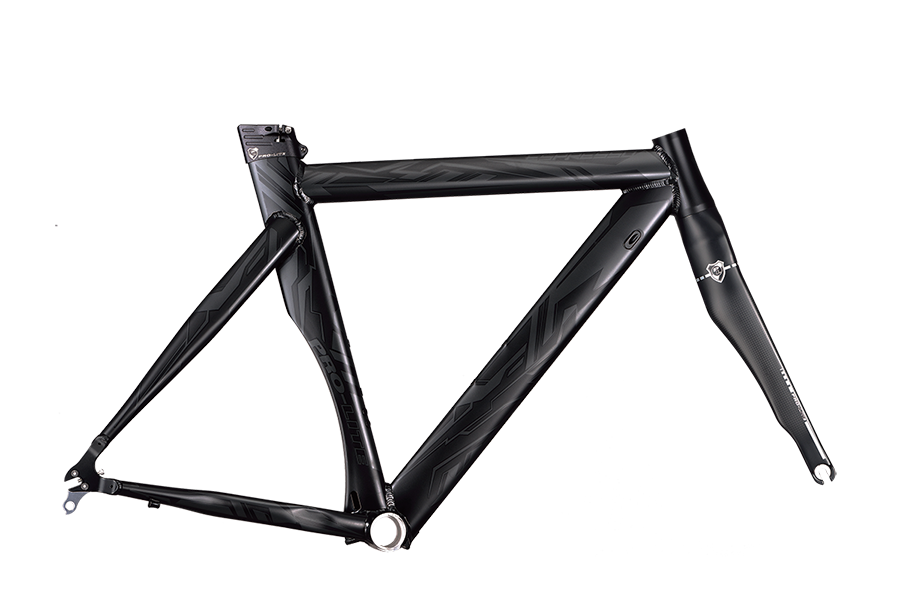

Matt Black
Matt Black
Gloss White

Side View (B)

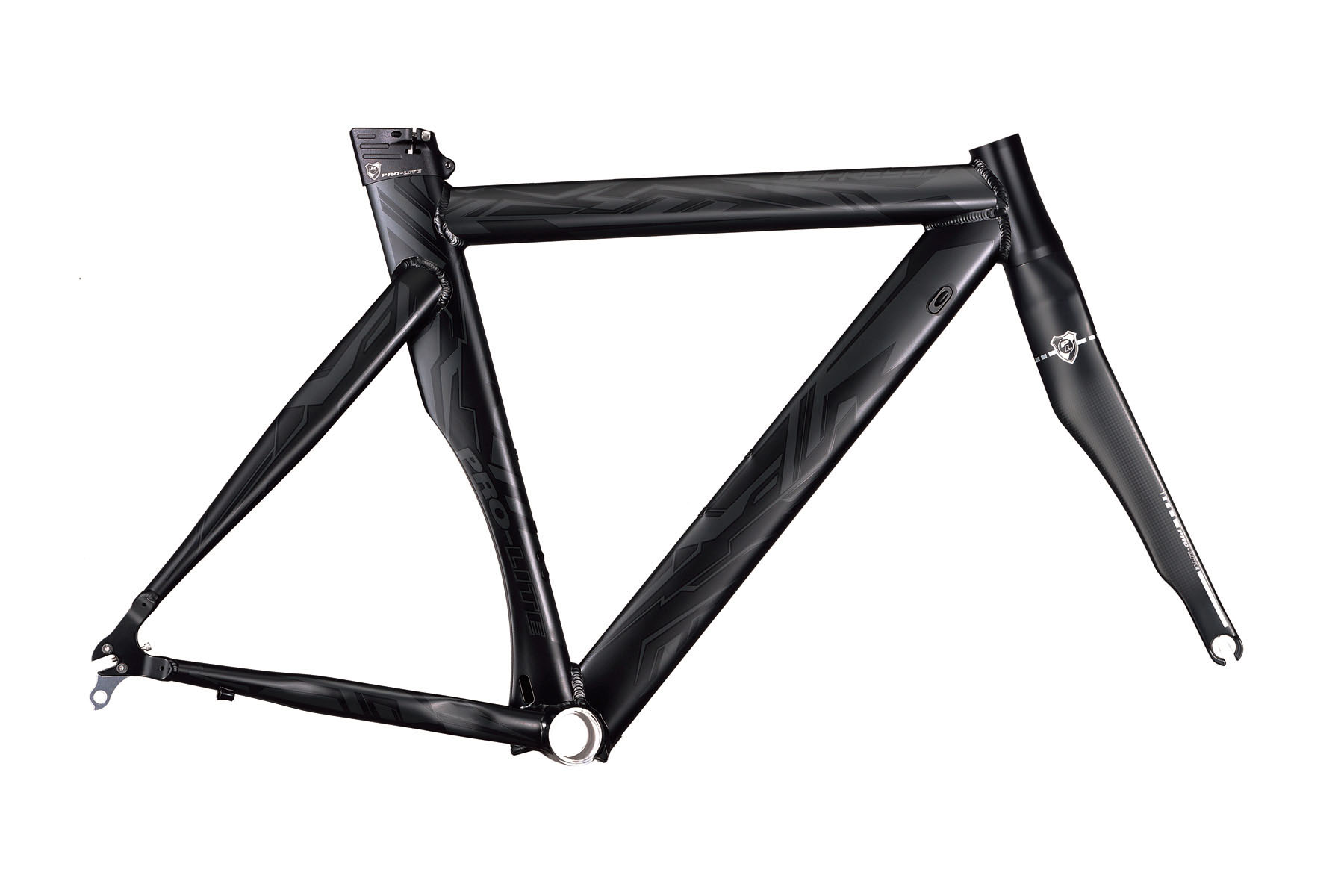

Angle View (B)

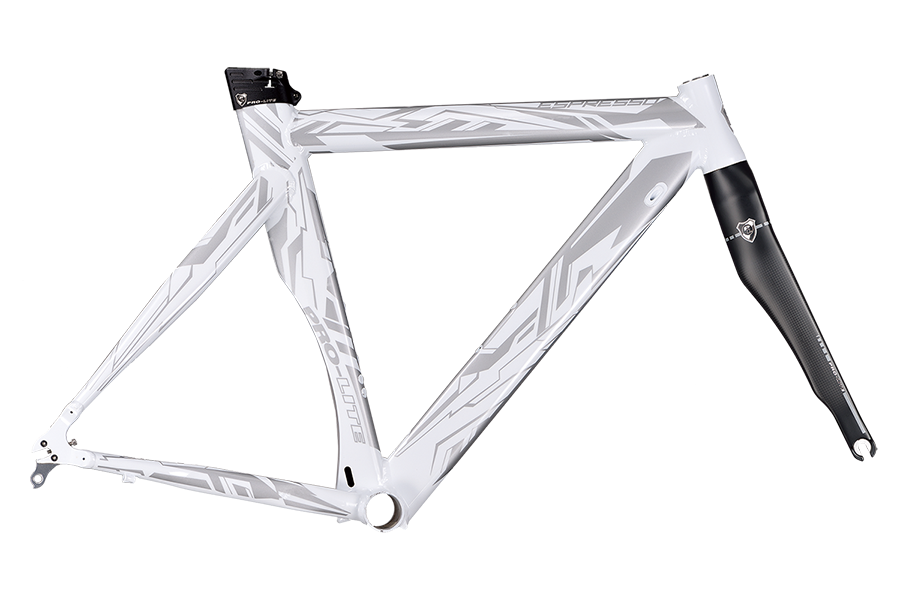

Side View (W)

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

The Espresso was born into a fast paced world, where speed is the main characteristic of the frame. With our Carbon Aero post and easy to adjust micro adjusters, you can get that TT record.

7005 Alloy

Heat Treated

BB86 Hub Shell

Internal cable routing

Tapered
Head Tube

Aerobuster 55 included

Smoothed welds

Inline cable adjustors

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Espresso GP kit includes:

Espresso GP frame
Abruzzo TT fork
Ancona headset and Wedge for carbon steerers
Aerobuster 55 and seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	Aerobuster 55
Front Derailleur	Braze-On Style
Cable Routing	Internal
BB Type	BB86
Dropout Type	Vertical
Frame Width	130

Geometry

Size	49	51	53	55	57	59
Seat Tube (C-T)	490	510	530	550	570	590
Top Tube (effective)	504.6	509.4	519.8	536.5	557	567.3
Chain Stay (actual)	393	393	393	393	393	393
Seat Tube Angle	76	76	76	76	76	76
Bottom Bracket Drop	68	68	68	68	68	68
Head Tube Length	100	110	125	132	134	149
Head Tube Angle	72	72.5	72.5	72.5	73	73
Reach	378.95	382.74	389.82	406.79	423.86	429.87
Stack	497.7	508.81	523.12	529.79	533.32	547.67
Fork Length	367	367	367	367	367	367
Fork Rake	40	40	40	40	40	40
Wheelbase	949.7	950.9	962.3	979.5	995.7	1006.3
Weight	0	1560g	1590g	0	0	0
