Menaggio GP

Menaggio GP
Full Carbon Monocoque Track Frame with Aerobuster Evo

* Please note that the fork may be slightly different than pictured.
Matt Black

Side View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

Designed with feedback from track athletes all over the world, the layup has been improved over previous versions. We had one thing in mind with the Menaggio: pure power.

As with all of our carbon frames, the Menaggio GP is manufactured using thick-wall air bladders and high pressure vacuum forming for increased strength from the inside out.

Toray 700
Carbon Fibre

Tapered
Head Tube

Aerobuster Evo
Adjustable on 3 axes

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Menaggio GP kit includes:

Menaggio GP frame
Anzio Tk fork
Ancona headset and Wedge for carbon steerers
Aerobuster Evo seat post and clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	Aerobuster EVO
Front Derailleur	n/a
Cable Routing	n/a
BB Type	BSA 68
Dropout Type	Horizontal
Frame Width	120

Geometry

Size	Small	Med	Large
Seat Tube (C-T)	495	495	495
Top Tube (effective)	523.41	555	580
Chain Stay (actual)	380	380	380
Seat Tube Angle	75	75	75
Bottom Bracket Drop	65	65	65
Head Tube Length	85	105	130
Head Tube Angle	72.5	72.5	72.5
Reach	396.56	423.43	441.17
Stack	471.13	490.21	514.05
Fork Length	370	370	370
Fork Rake	38mm	38mm	38mm
Weight	1340g	1410g	1460g

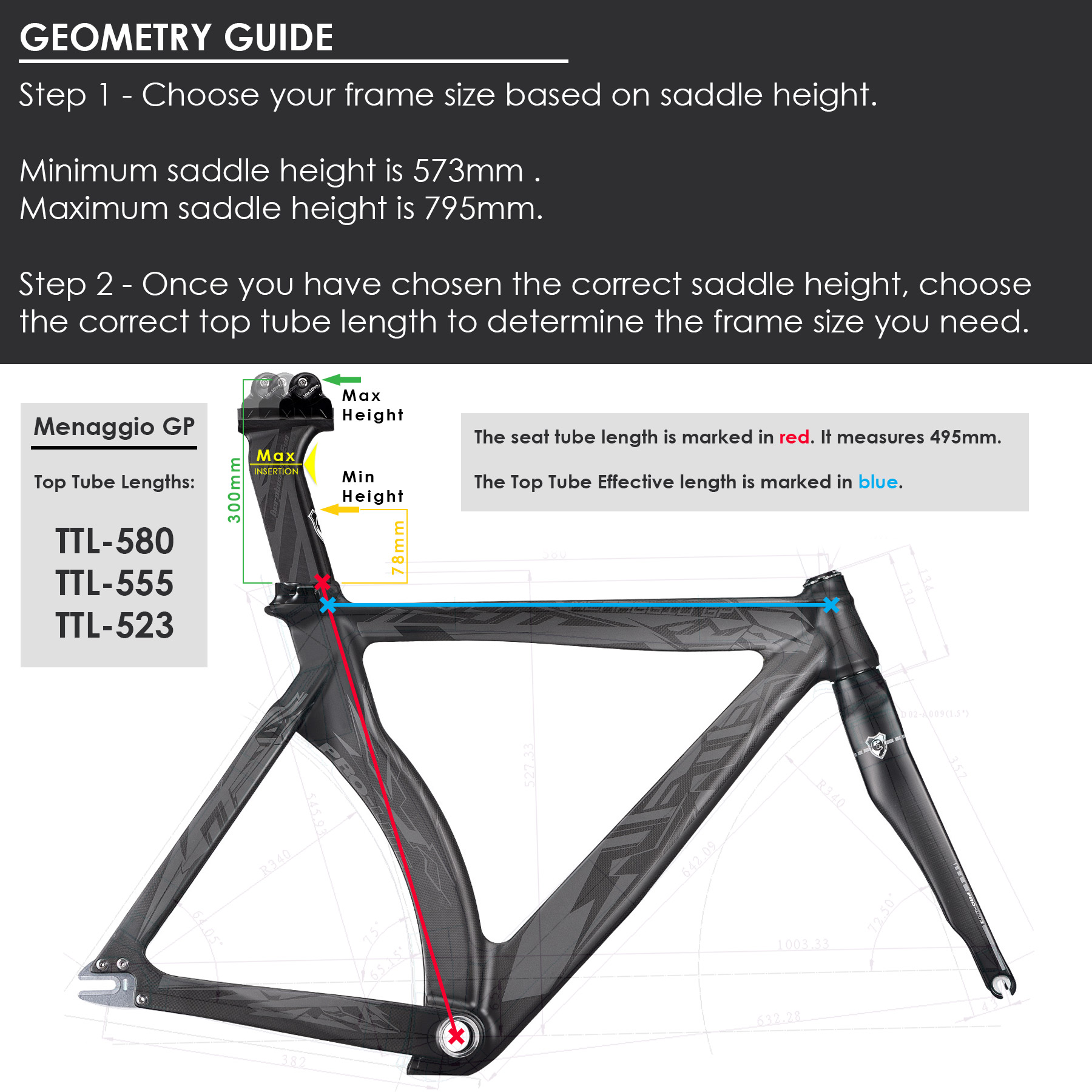

Are you wanting a bit more clarification on the geometry? Click the picture below to learn more.
