Cuneo GP

Cuneo GP
7046 Alloy Road Frame

Matt Black
Matt Black
Gloss White

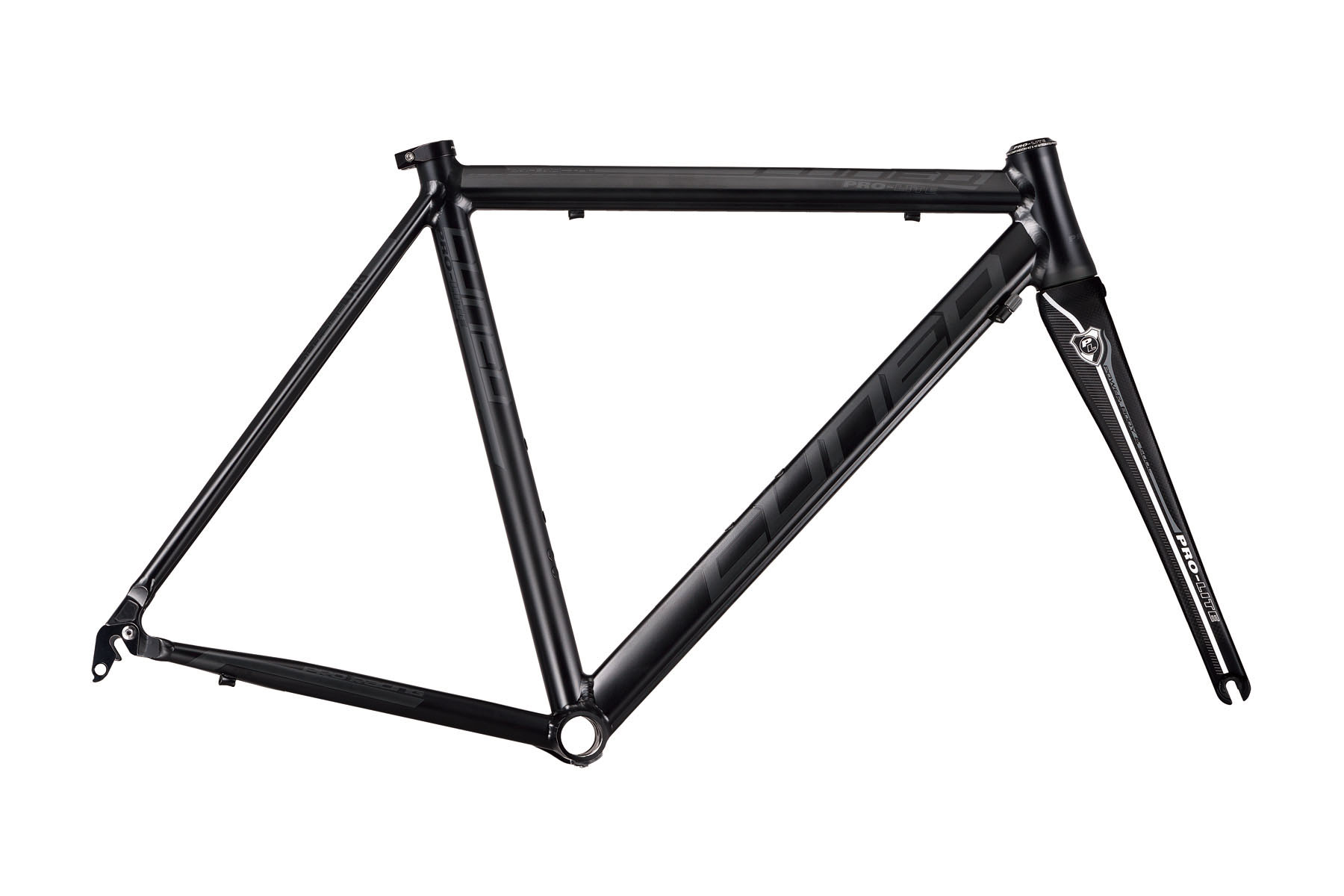

Side View (B)

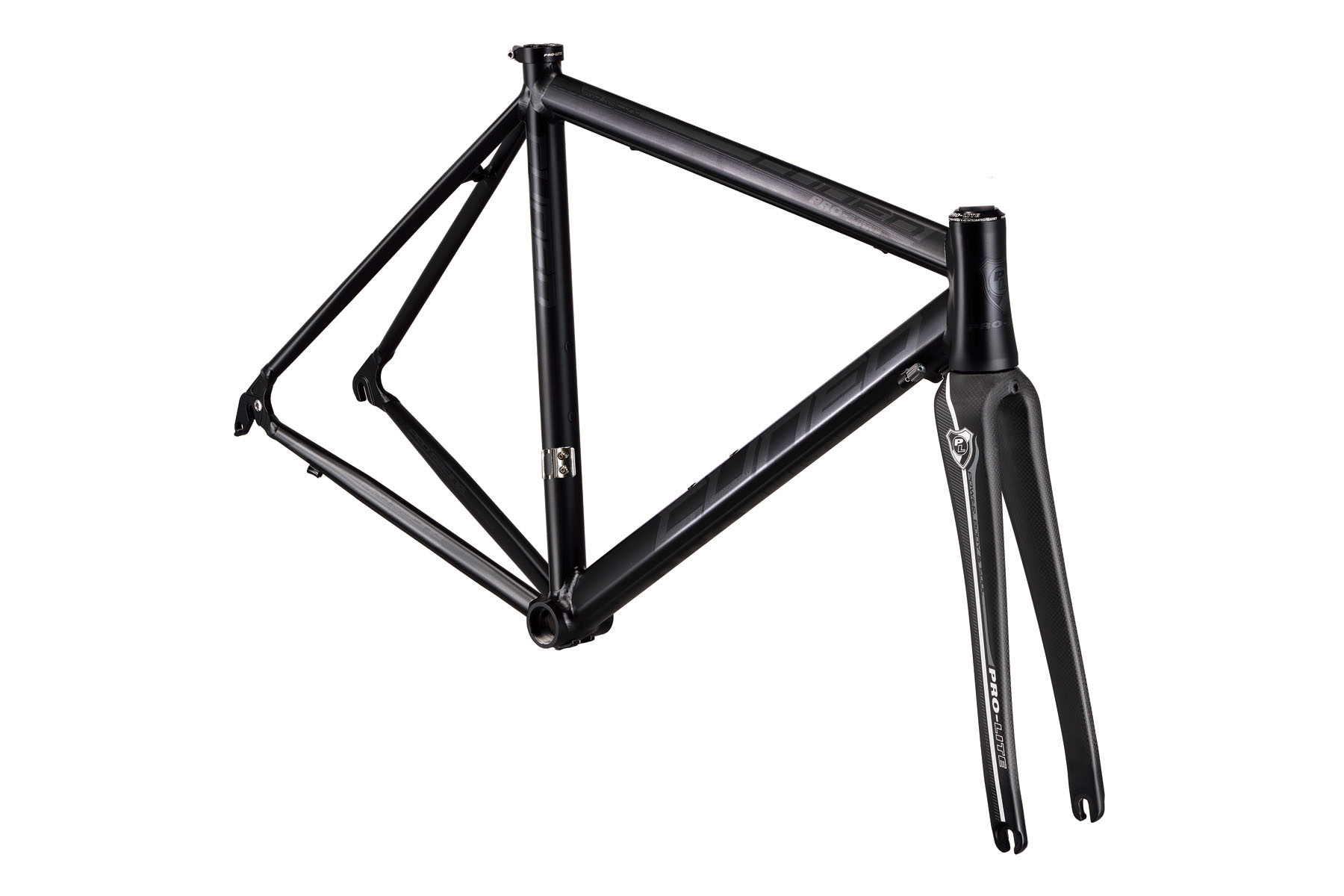

Angle View (B)

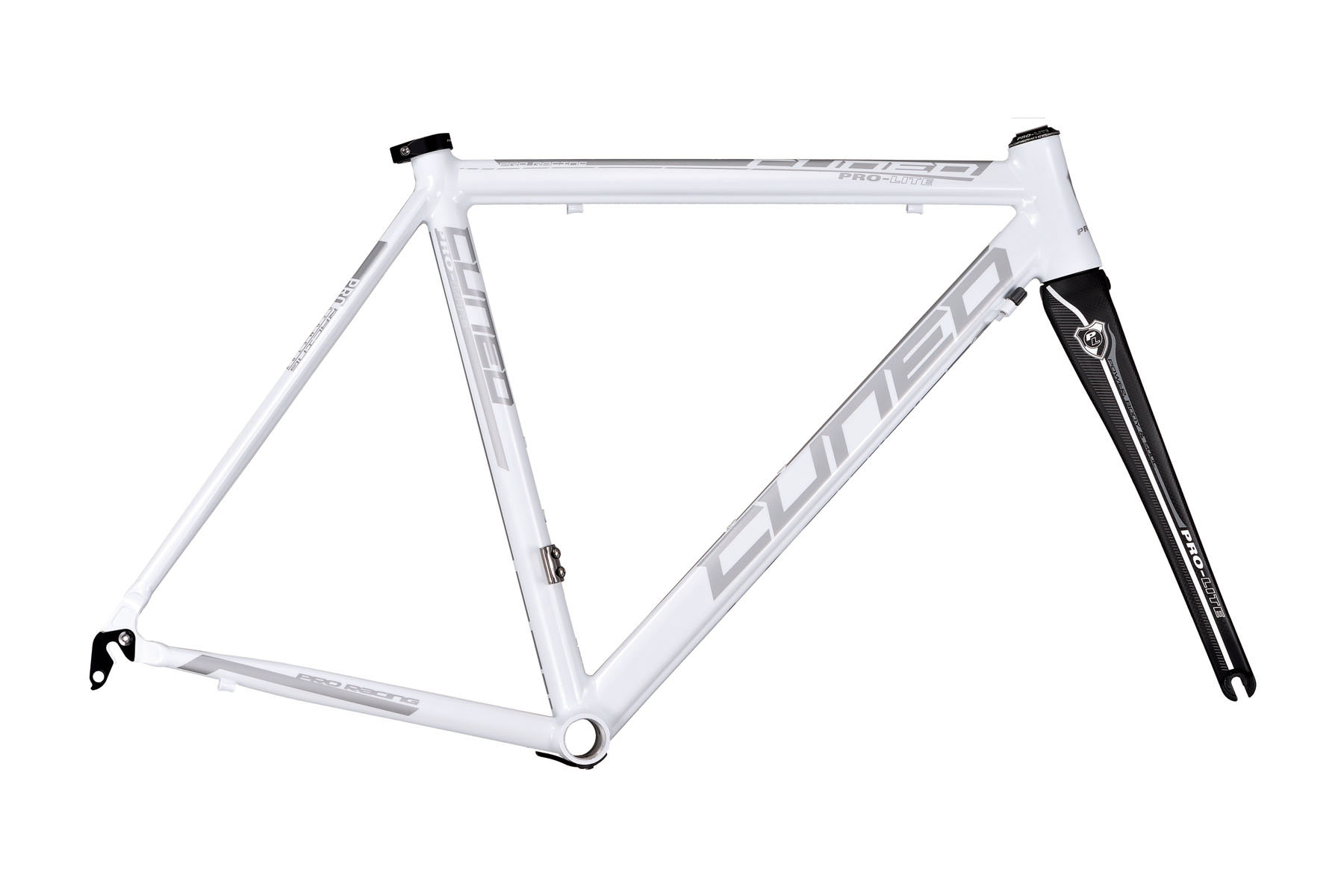

Side View (W)

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

The beauty of the Cuneo GP shouts at you to ride it. The unique tubing shapes deliver optimal power transfer. The strength of the custom 7046 tubing continues to amaze, with frames just over 1kg designed for race level handling and real-world strength at a price anyone can afford.

The Cuneo GP - The perfect choice when speed is more than just a dream.

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Cuneo GP kit includes:

Cuneo GP frame
Liguria Ponente fork
Ancona headset and Wedge for carbon steerers
Garda seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	31.6
Front Derailleur	Braze-On Style
Cable Routing	External
BB Type	BSA 68
Dropout Type	Vertical
Frame Width	130

Geometry

Size	48	50	52	54	56	58	60.5
Seat Tube (C-T)	485	505	525	545	565	585	605
Top Tube (effective)	500	520	535	550	560	575	590
Chain Stay (actual)	400	400	400	400	405	407	407
Seat Tube Angle	74	74	74	74	73.5	73.5	73.5
Bottom Bracket Drop	67	67	67	67	67	67	67
Head Tube Length	90	102	120	140	160	178	200
Head Tube Angle	72	72.5	73	73	73	73	73
Reach	357.67	372.64	383.65	393.96	396.67	401.57	411.04
Stack	490.29	502.62	521.82	541.79	557.17	577.99	598.4
Fork Length	371	371	371	371	371	371	371
Fork Rake	45	45	45	45	45	45	45
Wheelbase	937.22	953.73	965.14	980.5	990.98	1008.17	1023.37
Weight		1160g	1180g
