7046 Alloy Road Frame with Carbon Seat Stays and Aerobuster 40

Matt Black
Matt Black

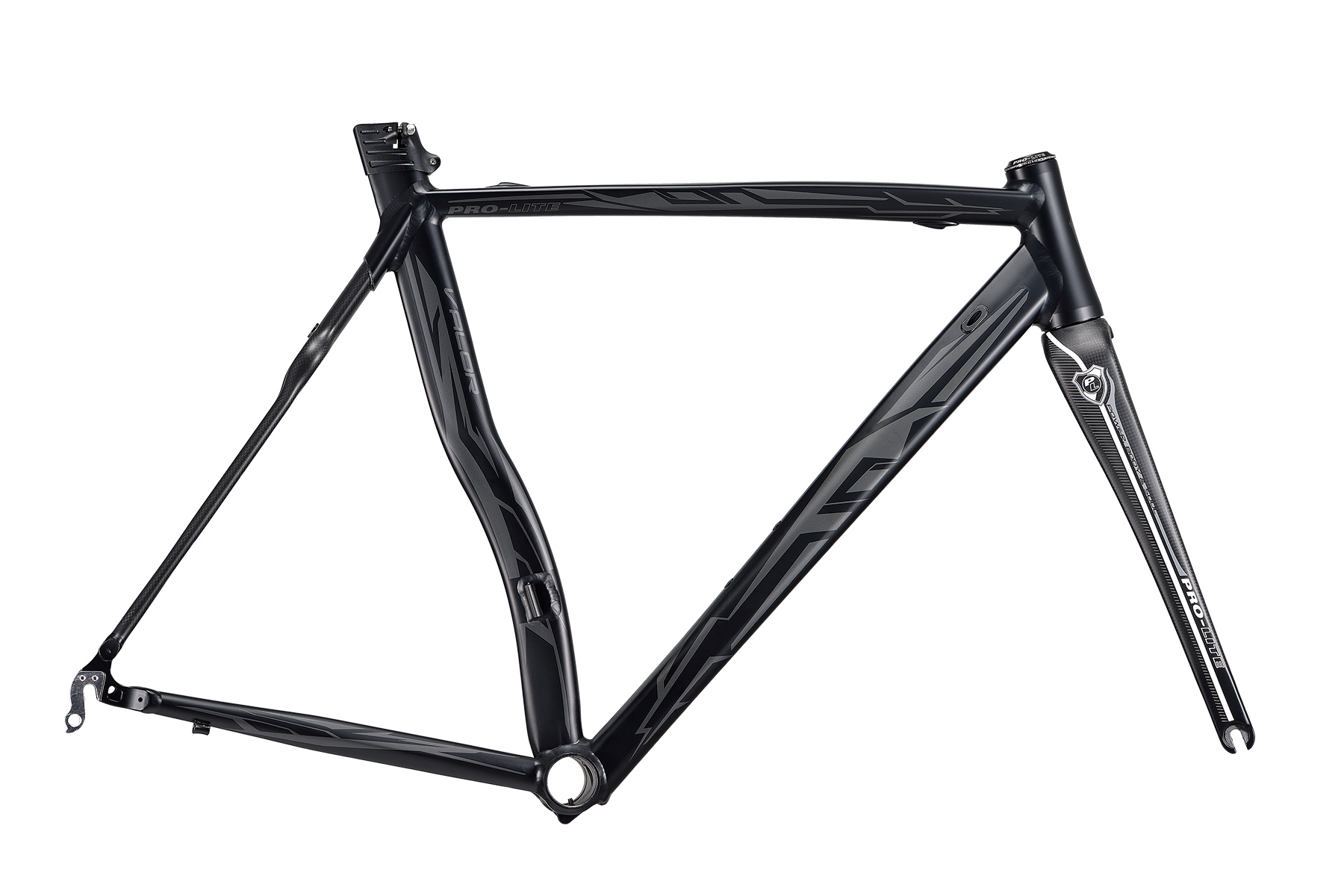

Side View

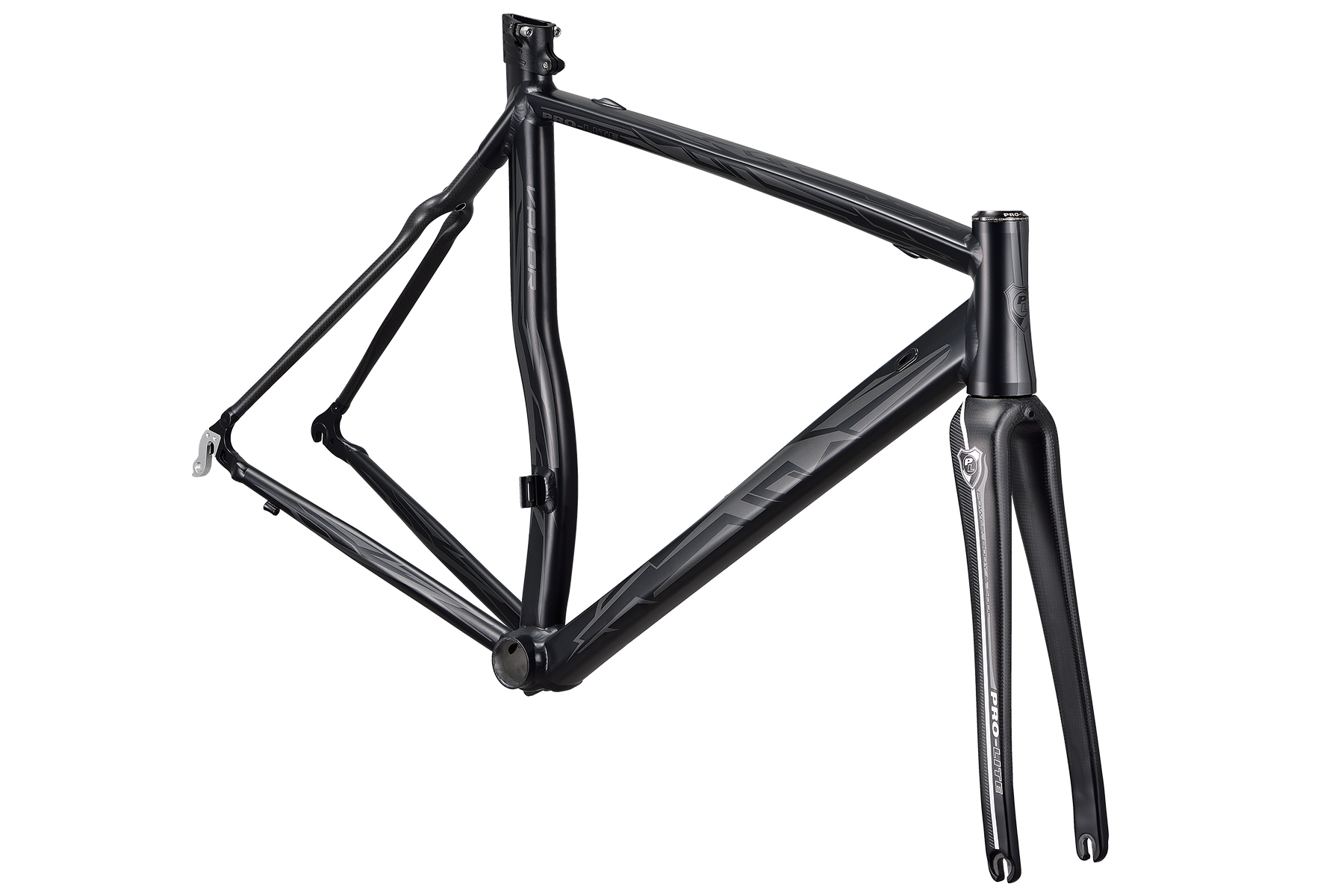

Angle View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

Why should you have to choose between comfort and speed?

The vibration damping benefits of carbon fiber and purpose-driven seat stay design are critical for modern course designs.

The Valor puts carbon where it counts, with a brand new tubing extrusion, using the same exceptionally light 7046 alloy and racer-developed SoftStay 3D profile seat stays designed to flex for comfort but remain stiff for power transfer as well as the Aerobuster 40 adjustable racing seat post.

Who says you can't have the best of both worlds?

7046 Alloy

Toray 700
Carbon Fibre

Heat Treated

BB86 Hub Shell

Internal cable routing

Tapered
Head Tube

Aerobuster 40 included

Smoothed welds

Inline cable adjustors

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Valor kit includes:

Valor frame
Aerobuster 40 seat post and clamp
Liguria Ponente fork
Ancona headset and Wedge for carbon steerers
Hardware for internal routing of Mech type cables

Specifications
Head Tube Type	Tapered
Seat Post Diameter	Aerobuster 40
Front Derailleur	Braze-On Style
Cable Routing	Internal
BB Type	BB86
Dropout Type	Vertical
Frame Width	130

Geometry

Size	48	50	52	54	56	58
Seat Tube (C-T)	485	505	525	545	565	585
Top Tube (effective)	506.6	520	535	550	560	575
Chain Stay (actual)	400	400	405	405	405	407
Seat Tube Angle	74	74	74	73.5	73.5	73
Bottom Bracket Drop	67	67	67	67	67	67
Head Tube Length	90	102	120	140	160	178
Head Tube Angle	72	72.5	73	73	73	73
Reach	366.48	374	383.69	387.81	392.05	400.45
Stack	490.42	498.59	520.22	539.24	556.65	576.01
Fork Length	371	371	371	371	371	371
Fork Rake	45	45	45	45	45	45
Wheelbase	943.82	953.73	970.21	980.8	990.98	1002.8
Weight		1195g	1215g
