Trentino GP

Trentino GP
7005 Alloy Track Frame

Matt Black
Matt Black
Gloss White
Gloss White

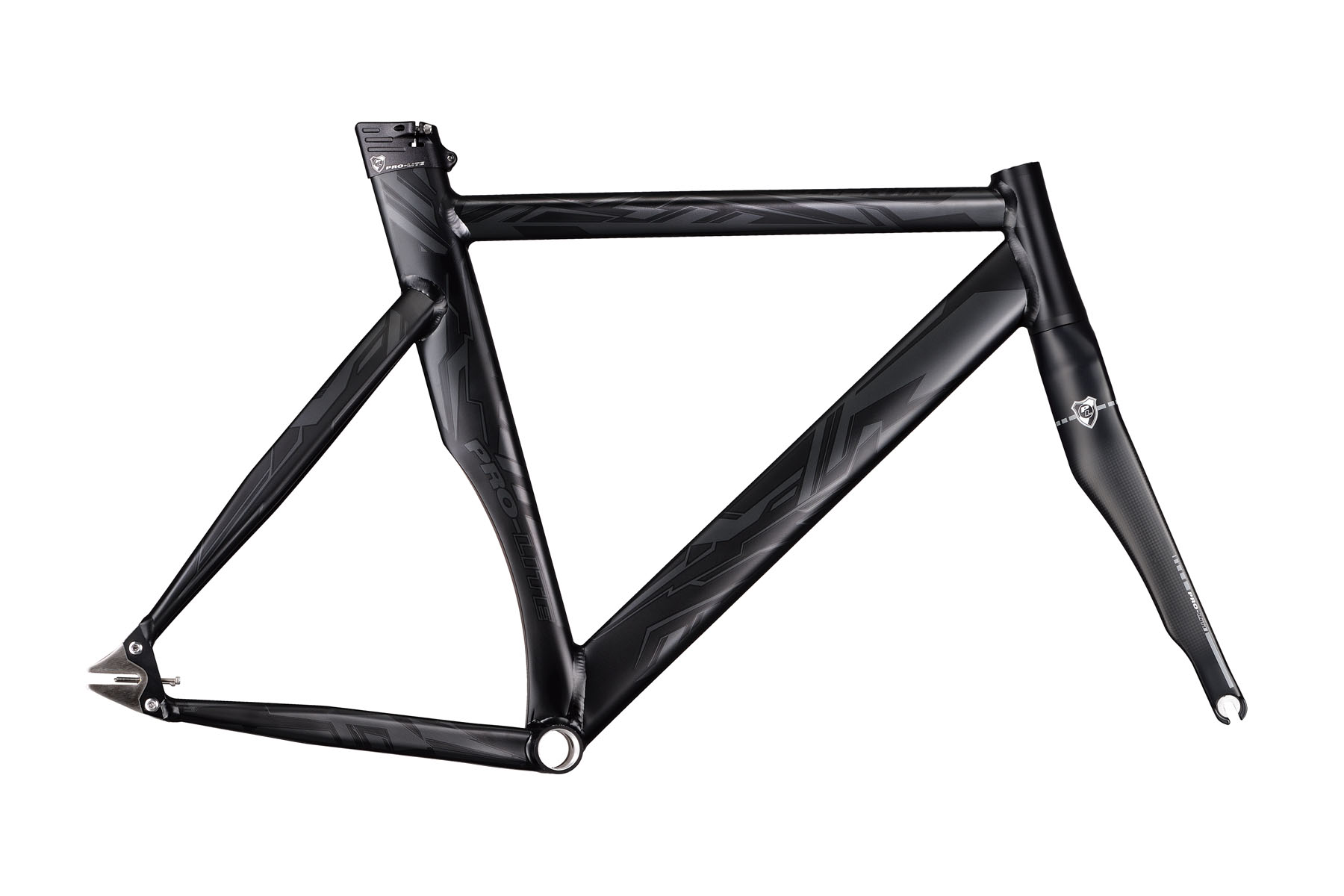

Side View (B)

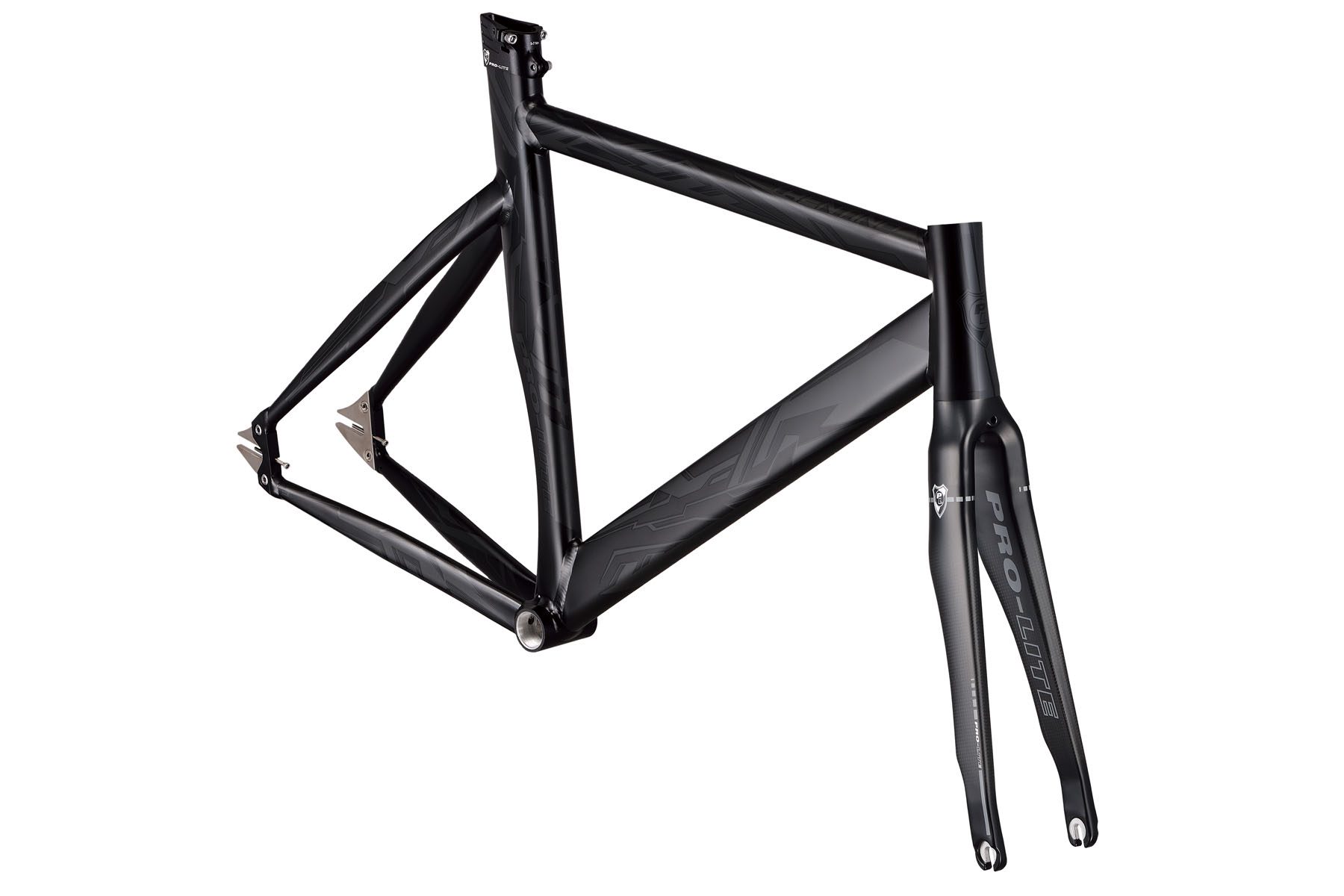

Angle View (B)

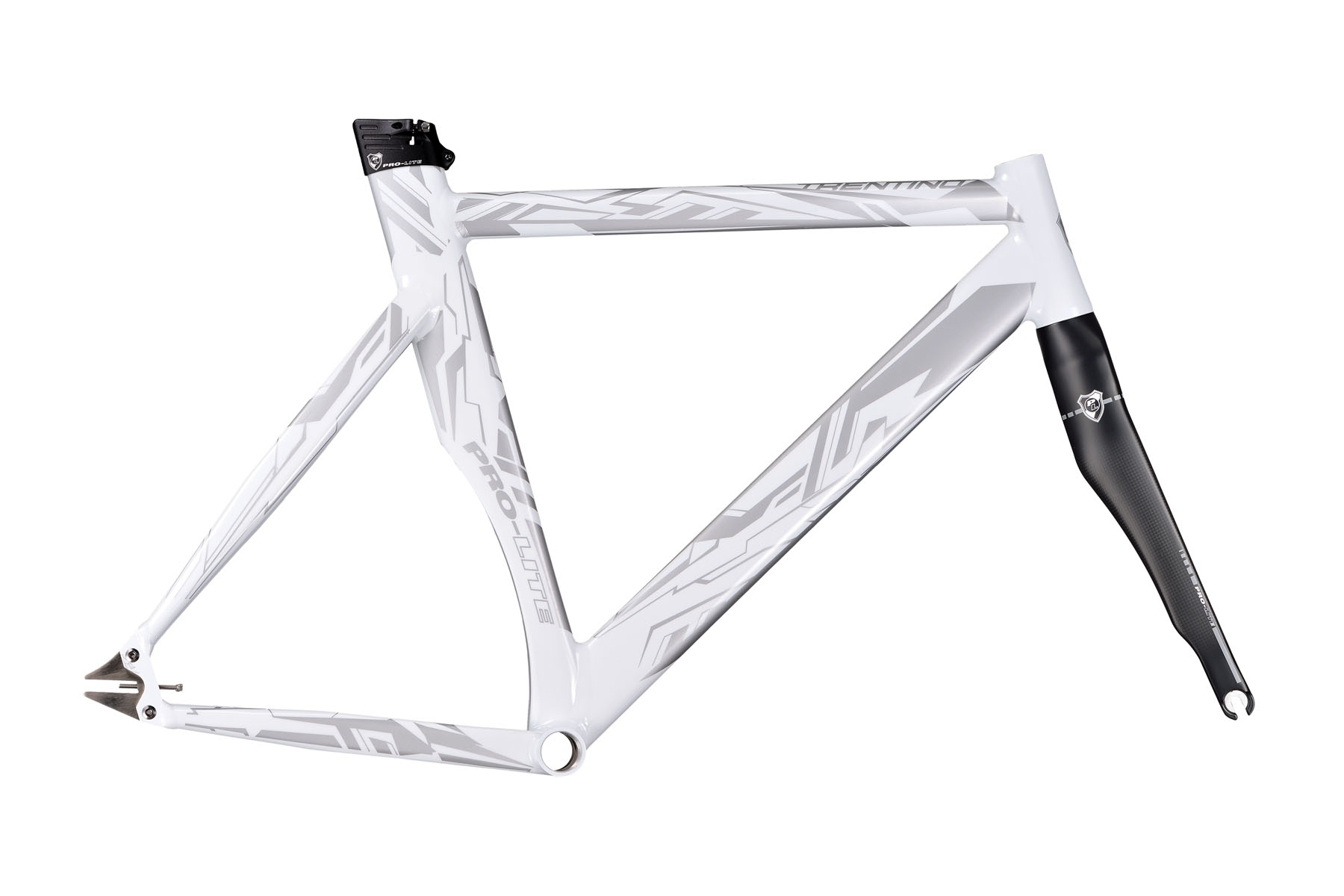

Side View (W)

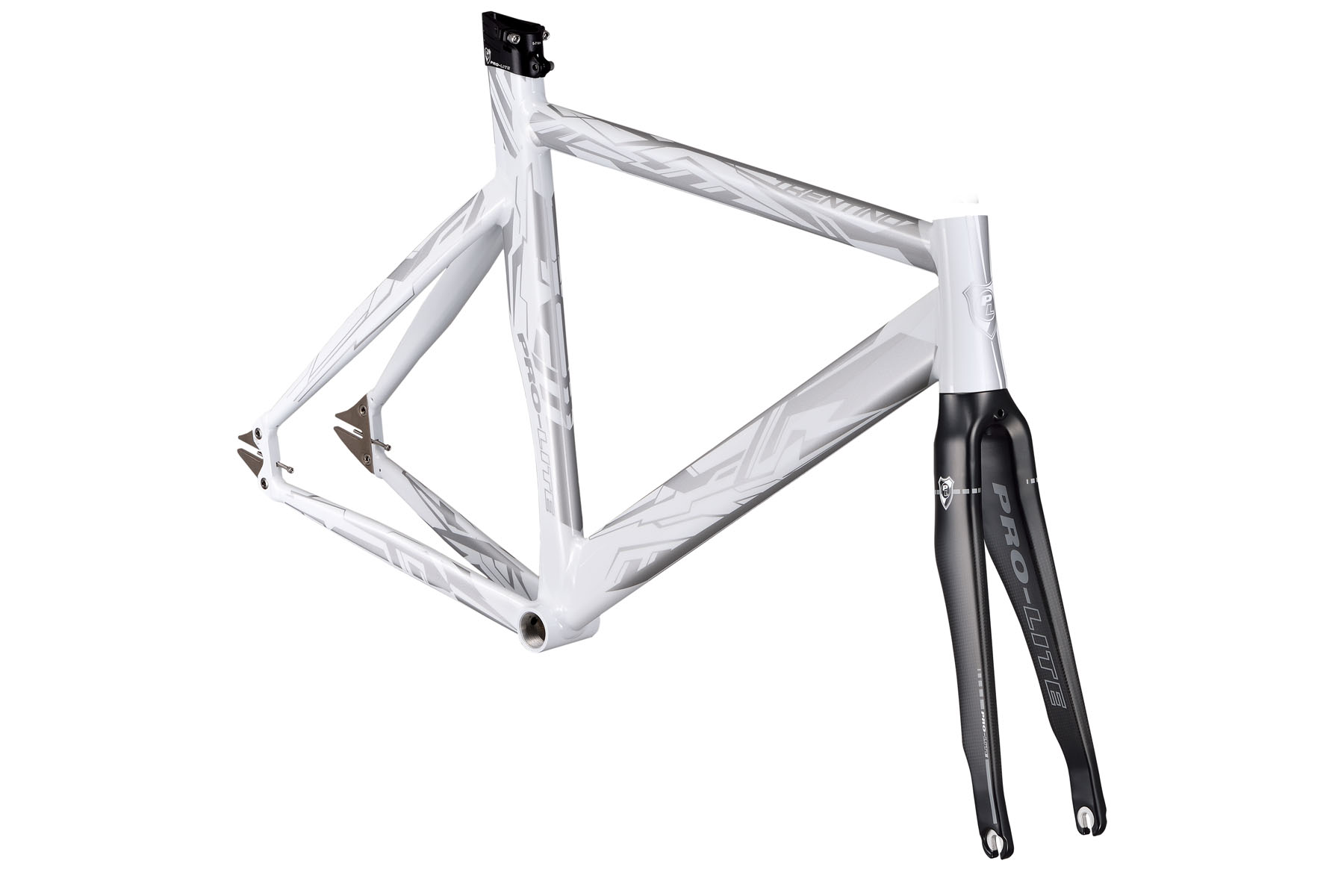

Angle View (W)

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

Whether you’re racing on the track or riding fixed, the Trentino GP has you covered. Ready to race to the café or velodrome.

7005 Alloy

Heat Treated

Tapered
Head Tube

Aerobuster 55 included

Tig Welded

Specifications

Since 2013, Pro-Lite frames will be sold as kits. The Trentino GP kit includes:

Trentino GP frame
Anzio Tk fork
Ancona headset and Wedge for carbon steerers
Aerobuster 55 and seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	Aerobuster 55
Front Derailleur	n/a
Cable Routing	n/a
BB Type	BSA 68
Dropout Type	Horizontal
Frame Width	120

Geometry

Size	49	52	54	56	58
Seat Tube (C-T)	490	520	540	560	580
Top Tube (effective)	537.64	543.16	562.97	574.29	583.54
Chain Stay (actual)	370	370	370	370	370
Seat Tube Angle	74	74	74	74	74
Bottom Bracket Drop	50	50	50	50	50
Head Tube Length	130	140	150	165	186
Head Tube Angle	74	74	74	74	74
Reach	400.81	397.54	412.75	421.67	421.37
Stack	510.44	519.95	530.32	542.47	563.73
Fork Length	362	362	362	362	362
Fork Rake	40	40	40	40	40
Wheelbase	942.64	942.64	959.7	969.64	979.17
Weight		1765g	1795g
