Chatillon Carbon

Chatillon
Full Carbon MTB Frame

Matt Black
* Fork sold separately
Matt Black
* Fork sold separately

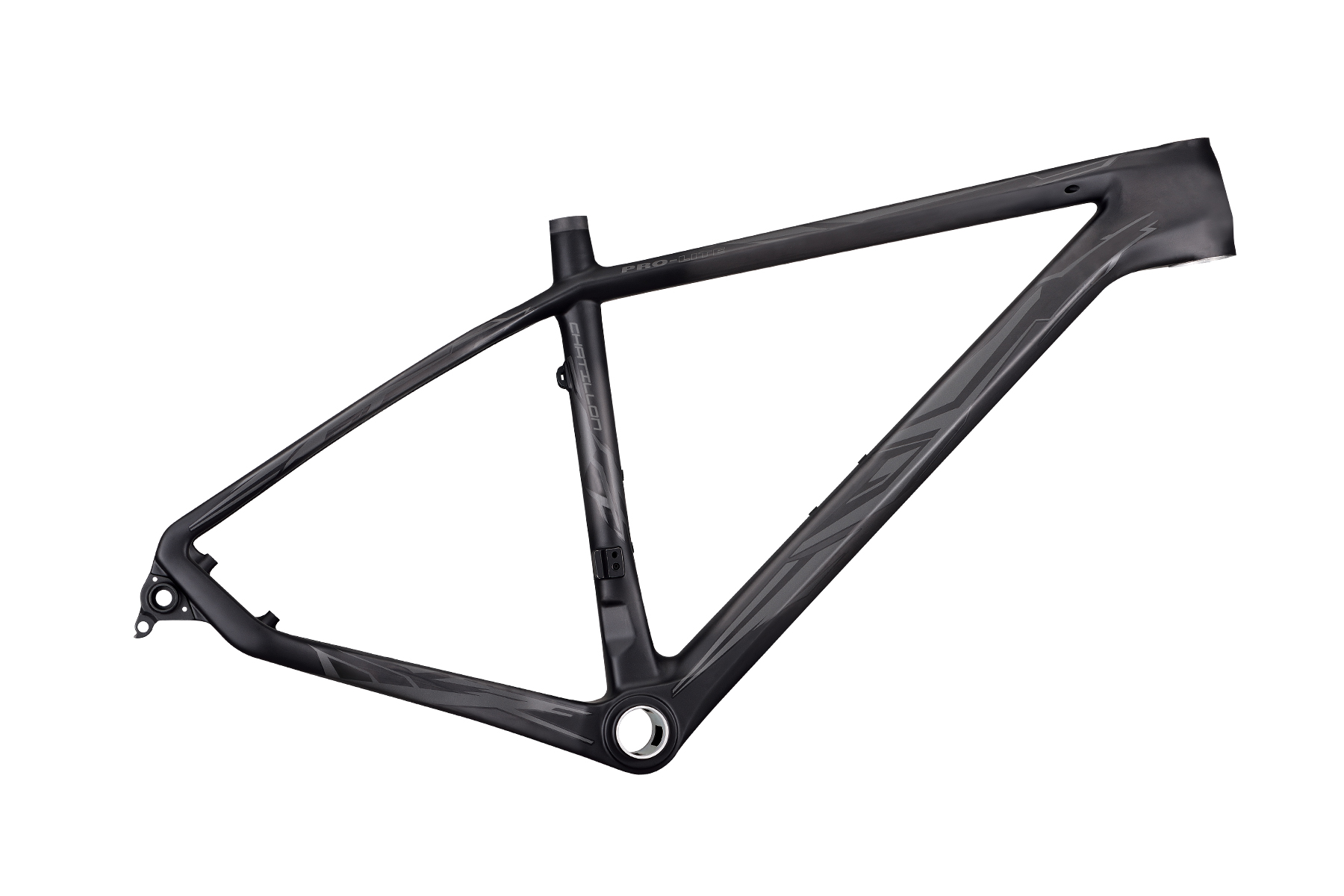

Side View
Angle View

To allow for the expansion of our OEM business, we have had to move our frame production away from the Pro-Lite lineup to OEM manufacturing. If you are in need of frames for a small, medium or large brand, please have a look at our OEM page or contact us directly with some information about your company through our contact page. Our MOQ is reasonable and of course, everything is 100% hand-built.

Features

The Ultimate Race Ready full carbon frame, nothing more to be said.

Toray 700
Carbon Fibre

BB92 Hub Shell

Internal cable routing

Tapered
Head Tube

X12 Dropouts compatible with e-thru

Specifications - 29"

Since 2013, Pro-Lite frames will be sold as kits. The Chatillon kit includes:

Chatillon carbon frame
Azzurro headset and star nut for alloy steerers
Giano MTB QR seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	31.6
Front Derailleur	Direct Mount
Cable Routing	Internal
BB Type	BB92
Dropout Type	Vertical
Frame Width	135 or 142

Specifications - 27.5" (650B)

Since 2013, Pro-Lite frames will be sold as kits. The Chatillon kit includes:

Chatillon carbon frame
Azzurro headset and star nut for alloy steerers
Giano MTB QR seat clamp

Specifications
Head Tube Type	Tapered
Seat Post Diameter	31.6
Front Derailleur	Direct Mount
Cable Routing	Internal
BB Type	BB92
Dropout Type	Vertical
Frame Width	135 or 142

Geometry

29"
27.5" (650B)

Size	16"	18"	20"
	Small	Medium	Large
Seat Tube (C-T)	410	460	510
Top Tube (effective)	593.82	593.82	618.54
Chain Stay (actual)	445	445	445
Seat Tube Angle	73.5	73.5	73.5
Bottom Bracket Drop	60	60	60
Head Tube Length	102	107	117
Head Tube Angle	71	71	71
Reach	378.52	397.24	411.86
Stack	619.94	621.25	632.71
Fork Length	508	508	508
Fork Rake	50	50	50
Wheelbase	1070	1090.18	1115
Weight (X12)	1150g
Weight (QR)	1120g

Size	16.5"	18"	20"
	Small	Medium	Large
Seat Tube (C-T)	420	470	520
Top Tube (effective)	570	590	620
Chain Stay (actual)	427	427	427
Seat Tube Angle	73	73	73
Bottom Bracket Drop	48	48	48
Head Tube Length	100	110	120
Head Tube Angle	71	71	71
Reach	387.95	403.33	432.75
Stack	596.85	597.53	608.82
Fork Length	490	490	490
Fork Rake	40	40	40
Wheelbase	1043.3	1063.6	1094.1
Weight (X12)	1120g
Weight (QR)	1090g
