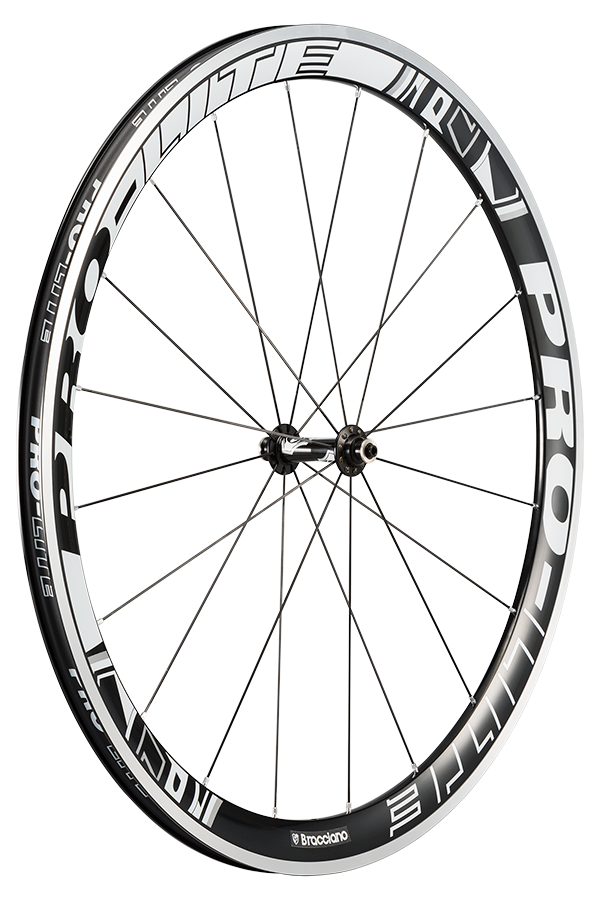

Bracciano A42W
42mm Full Alloy Wide Aero Wheelset

The exceptionally popular Bracciano A42 now has a Wide Rim version!

With the tremendously robust alloy aero rim, light weight Bracciano hubs with Japanese EZO bearings to roll smooth and fast, you won't find another wheel like it. It's easy to service with two allen keys. Our patented spoke braces effectively increase the size of the flange for better power transfer, meaning that when you pedal, the force created isn’t lost in the wheel and instead propels you forwards faster. Special Pro-Lite spokes allow high spoke tensions for class-leading Power Transfer.

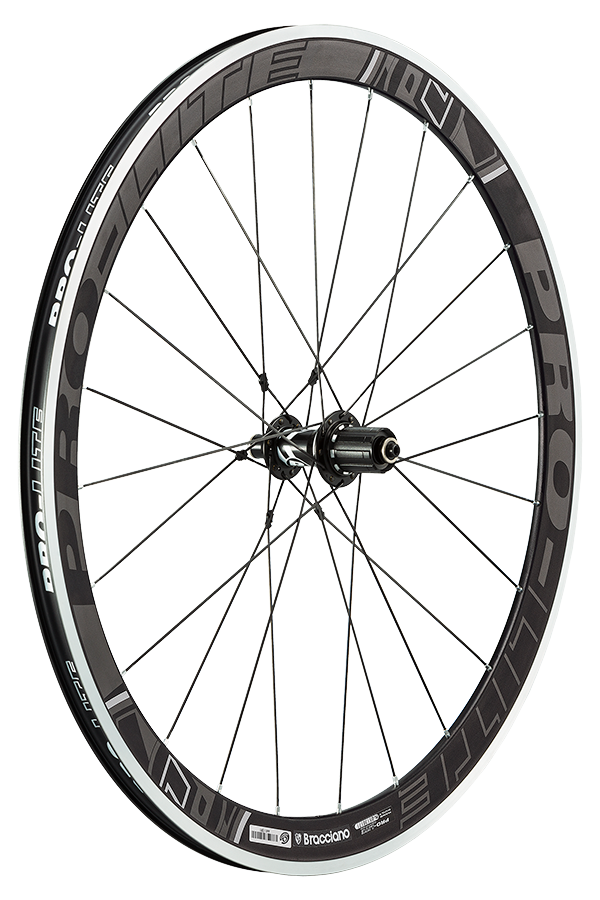

The Bracciano A42W is also available with a dark colorway as the A42W SE version, now available through other vendors.

This is the newest version of the Bracciano A42 with wide rims. If you are looking for information about the previous version with conventional width rims, please click here for the black and white version or here for the dark version.

Specifications

Rim (size)	700C	700C
	Front	Rear
ETRTO	19-622	19-622
Rim Type	42mm Sleeved 6061 Clincher	42mm Sleeved 6061 Clincher
Rim Finish	Shot Peened Black	Shot Peened Black
Spokes	20	24
Shape	2.2mm Double Butted Aero	2.2mm Double Butted Aero
Material	Sandvik Stainless Steel	Sandvik Stainless Steel
Nipple Material+Gauge	Alloy 14G	Alloy 14G
Spoke Brace	n/a	2.2mm
Lacing	Radial	2-Cross
Hub
Bearings (#)	2 (Japanese EZO)	4 (Japanese EZO)
Freehub Type	n/a	Shimano/SRAM or Campy
Freehub Switchable	n/a	Yes
Freehub Material	n/a	Alloy
Axle Width (O.L.D.)	100mm	130mm
Axle Material	Alloy	Alloy
Skewer Type	QR	QR
Weight (no skewer)	873g*	1046g*

* Weighed with rim tape, no skewers.

Compatible with the Shimano 11 speed standard as well as 9 and 10 speed cassettes

Hub

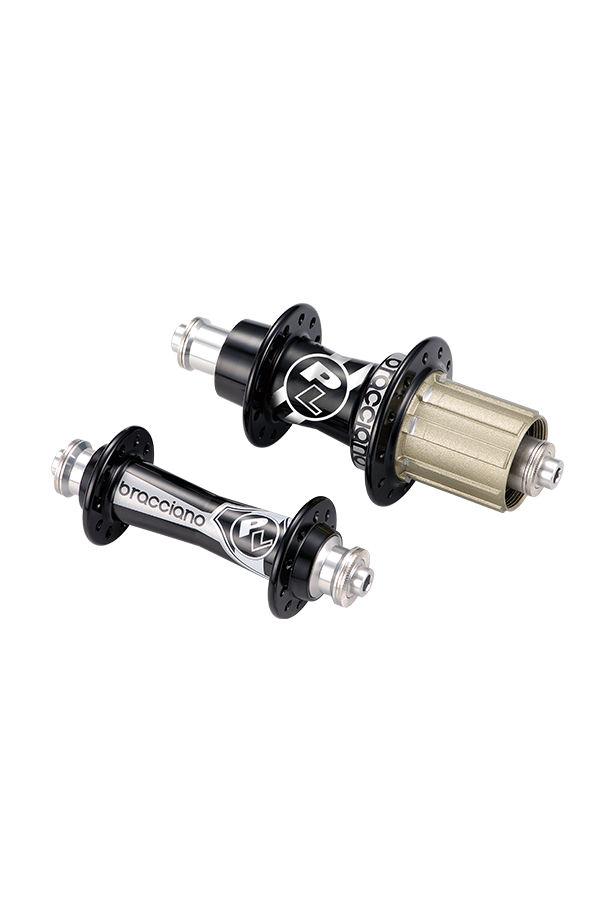

Bracciano Hubs

Used on one of our most acclaimed wheels, Bracciano Hubs are renowned for super low rolling resistance and impressive power transfer.

2 Sealed Bearings
(Front)

4 Sealed Bearings
(Rear)

Japanese EZO bearings

Swappable
Shimano/SRAM or Campy

Spokes

Spoke Braces included

J-Bend type spokes

Aero Blade spokes

Butted for strength

The finest Swedish
Stainless Steel

See link below to download the Spoke Tension Chart.

Rim

42mm Profile Alloy Rim

The new 42mm profile alloy sleeved wide rim of the Bracciano A42W offers outstanding aerodynamics and strength along with the rolling resistance benefits of a wide rim.
