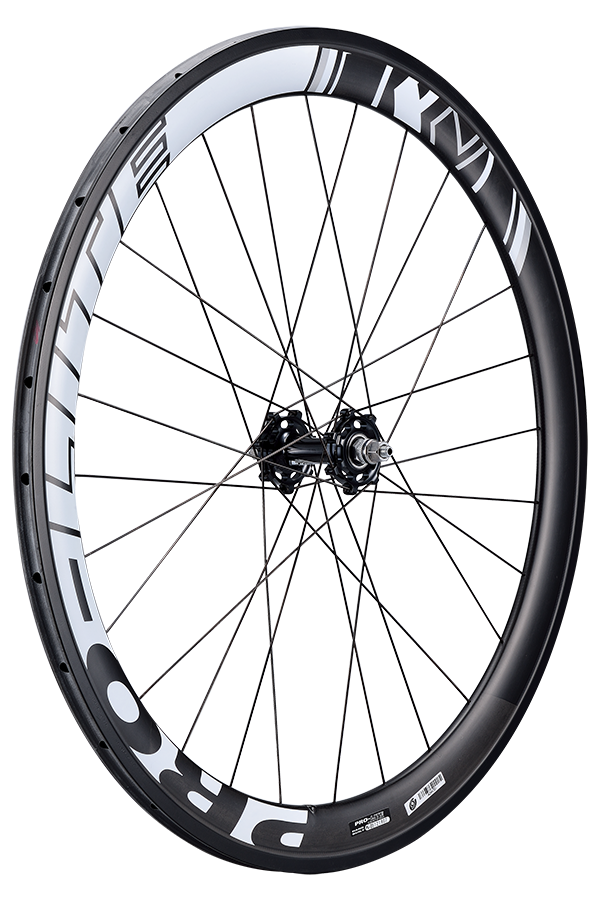

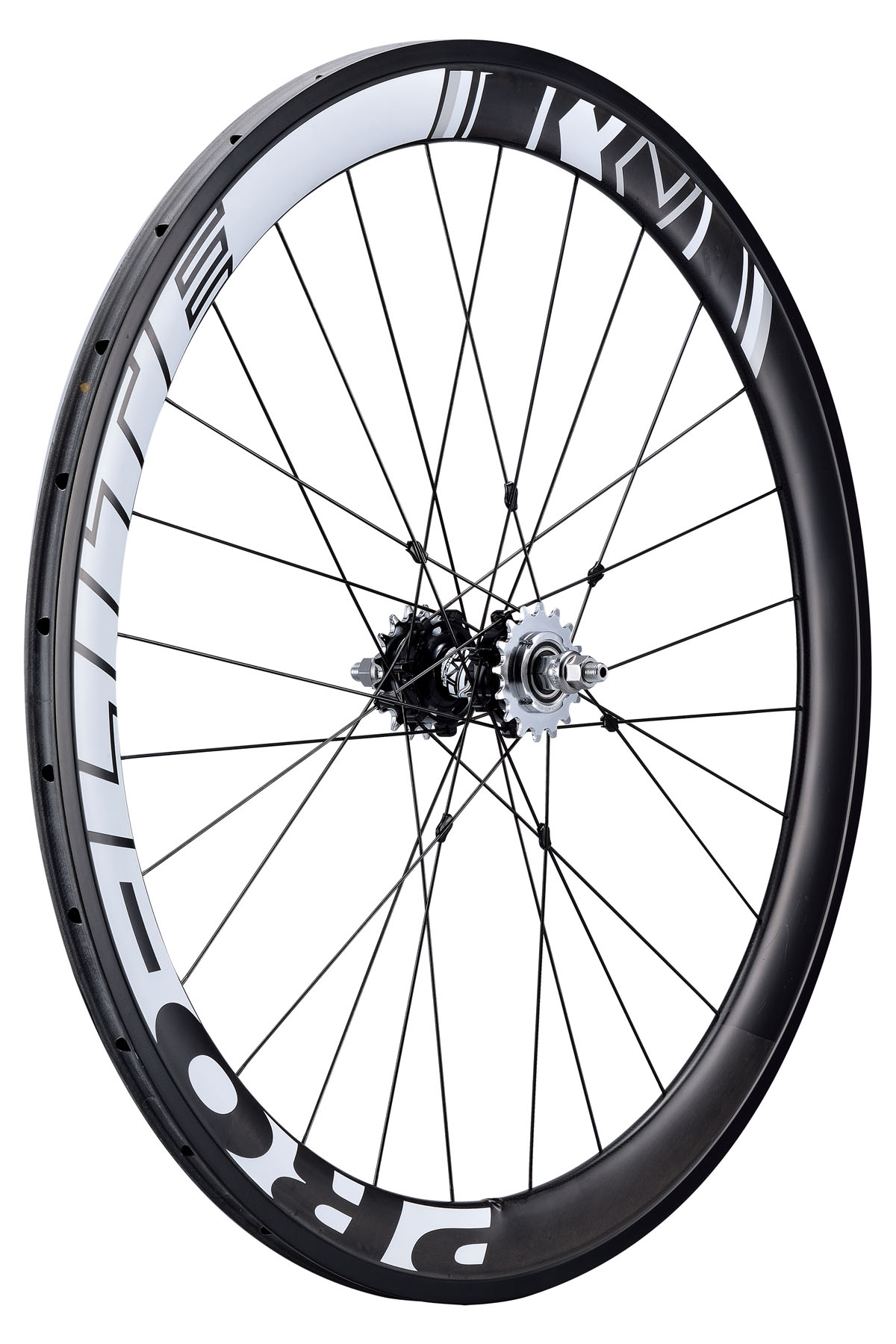

Lignano C50T
50mm Carbon Tubular Wheelset

The Lignano is stepping in to fill the shoes of the Rosa track wheels and are doing so by building strength upon strength. The Rosa featured some seriously low rolling resistance and exceptional power transfer. The Lignano steps that up by improving power transfer via straight-pull spokes attached to aerodynamic carbon rims.

Specifications

Rim (size)	700C	700C
	Front	Rear
ETRTO	Tubular 632-21 (OD)	Tubular 632-21 (OD)
Rim Type	Flash-Welded 6066 Tubular	Flash-Welded 6066 Tubular
Rim Finish	Clear Matt	Clear Matt
Spokes	28	28
Shape	2.0-1.8 DB Round Straight-Pull	2.0-1.8 DB Round Straight-Pull
Material	Sandvik Stainless Steel	Sandvik Stainless Steel
Nipple Material+Gauge	Brass 14G (Integ)	Brass 14G (Integ)
Spoke Brace	n/a	No
Lacing	2-Cross	2-Cross
Hub
Bearings (#)	2 (Japanese EZO)	2 (Japanese EZO)
Freehub Type	n/a	Track
Freehub Switchable	n/a	n/a
Freehub Material	n/a	n/a
Axle Width (O.L.D.)	100mm	120mm
Axle Material	Cr-Mo Hollow Nut	Cr-Mo Hollow Nut
Skewer Type	n/a	n/a
Weight	840g*	895g*

* Weighed without skewers.

Hub

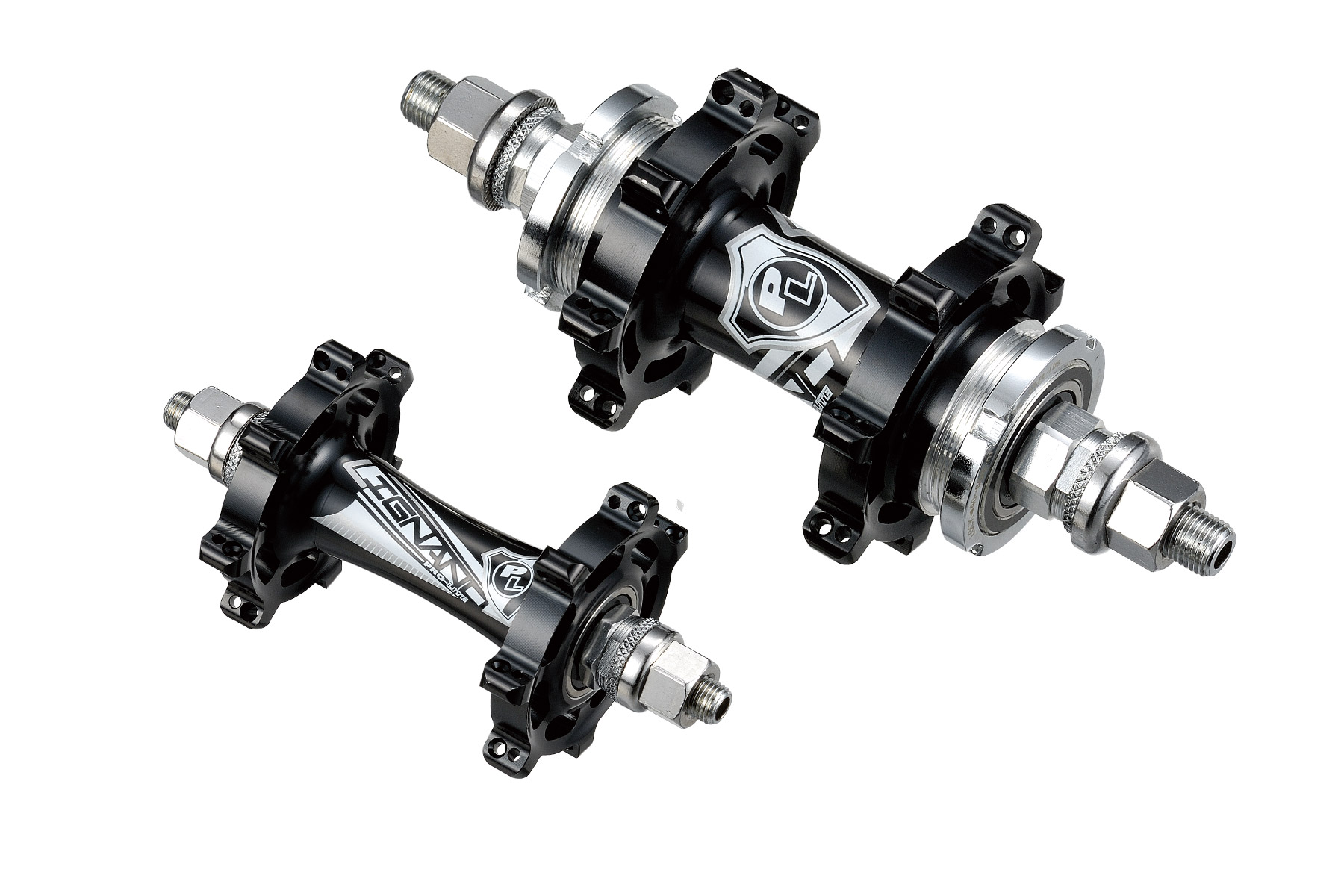

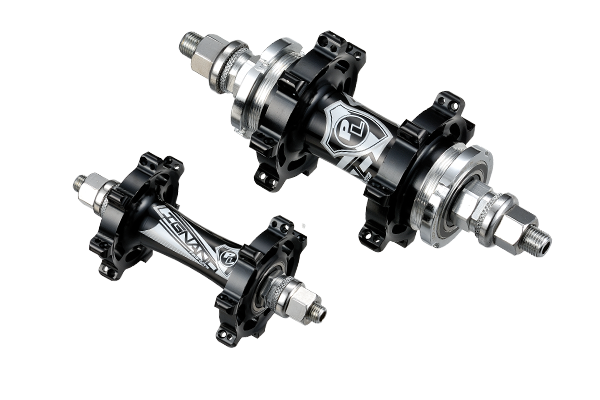

Lignano Hubs

The benefits of a straight-pull hub are largely in the reduced spoke length and the lack of a bend, but some hubs have the nipple at the hub, making it necessary to remove the tire to replace a spoke. The Lignano avoids this with the nipple in the rim. Add in the super fast Japanese EZO bearings and the result is a practical powerhouse of a track wheelset.
